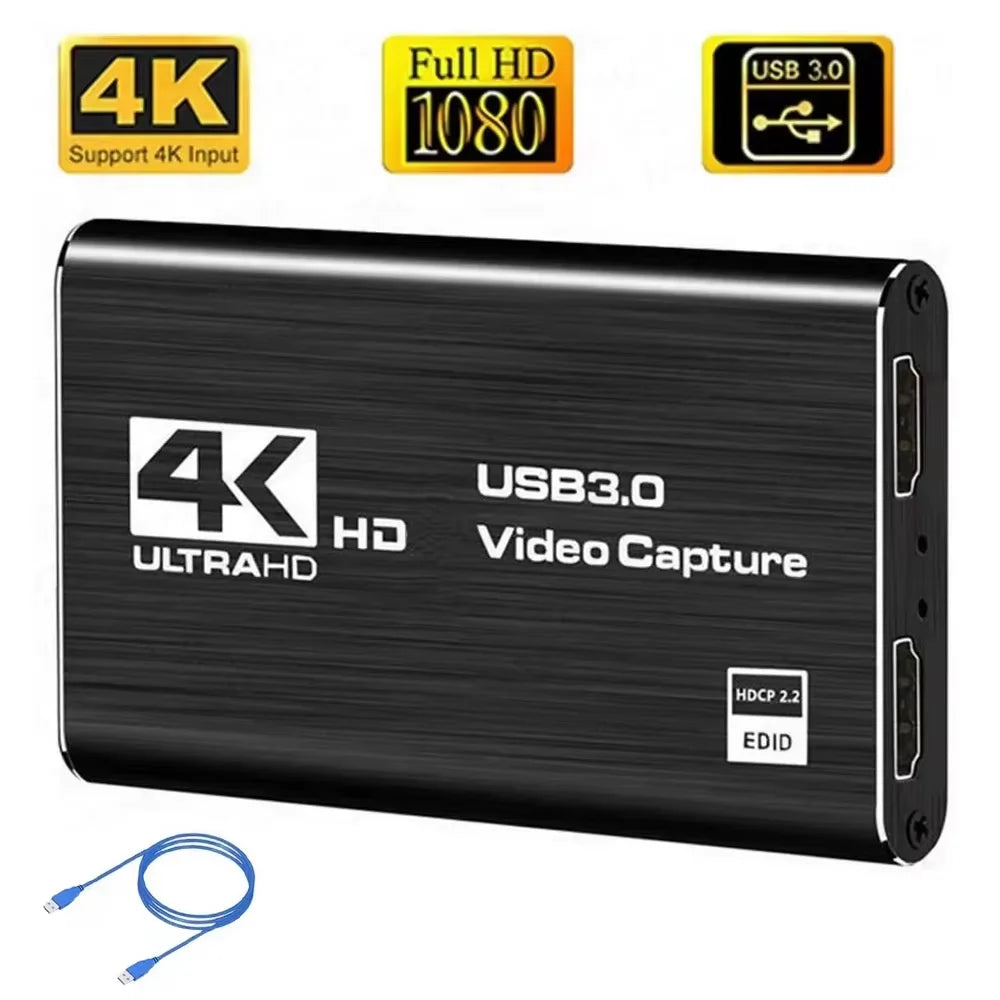

New 4K HDMI-Compatible USB 3.0 Video Capture Card 1080P 60FPS 60Hz Video Recorder Grabber for OBS Capturing Game Card Live Streaming

🌍🌍Specifications:

1. Input interface: 1 HDMI-compatible interface;

2. Output interface: USB3.0, 300 ~ 350MB / s throughput;

3. HDMI-compatible input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480

4. HDMI-compatible sound input: LPCM sound signal;

5. HDMI-compatible input format: compatible with HDMI-compatible 1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;

6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /

1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x1080

frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps;

7. Video sampling rate: HDMI-compatible : 165MHz;

8. Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards;

9. Output color space: YUV, RGB;

10. Support operating system: Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;

11. Software compatibility:

Adobe Flash Media Live Encoder (Windows, OS X);

Real Producer Plus (Windows); VLC (Windows, OS X, Linux);

QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and etc.

12. Power consumption: <= 2.5W;

13. Working temperature: 0-70 degrees Celsius;

14. Storage temperature: -20-120 degrees Celsius;

15. Storage humidity: 5% -90%;

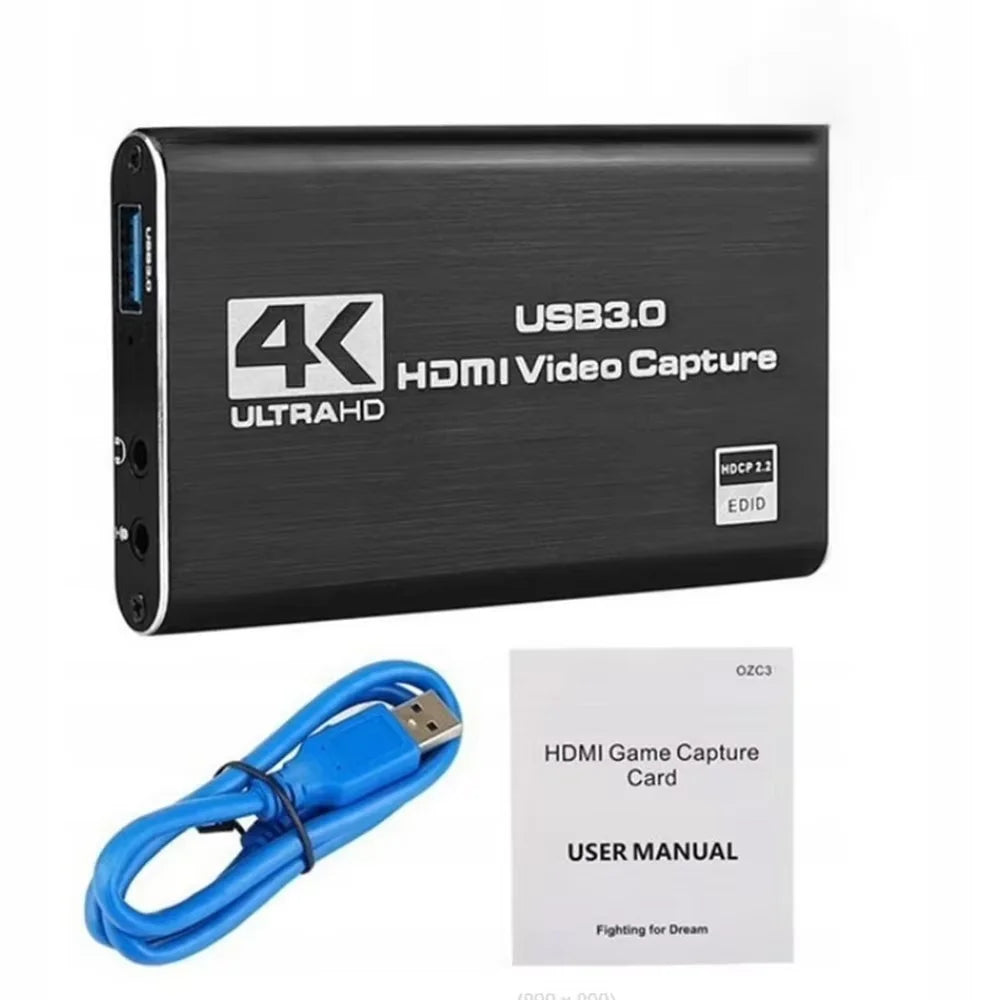

🌍🌍Package List:

1* Video Capture Card

1* 1m USB3.0 Male to Male Data Cable

1* User Manual

🌍🌍System Requirements:

📲Computer system requirements: Windows® 10 / Windows 8.1 / Windows 7 (SP1);

📲Desktop computer: Intel® Core ™ i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above;

📲Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above.

🌍🌍Mobile phone system requirements:

📲Android phone (supported by newer phones);

📲Only supports USB2, not USB3. (The reason is that android UVC driver does not support USB3);

📲If it is a USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use.

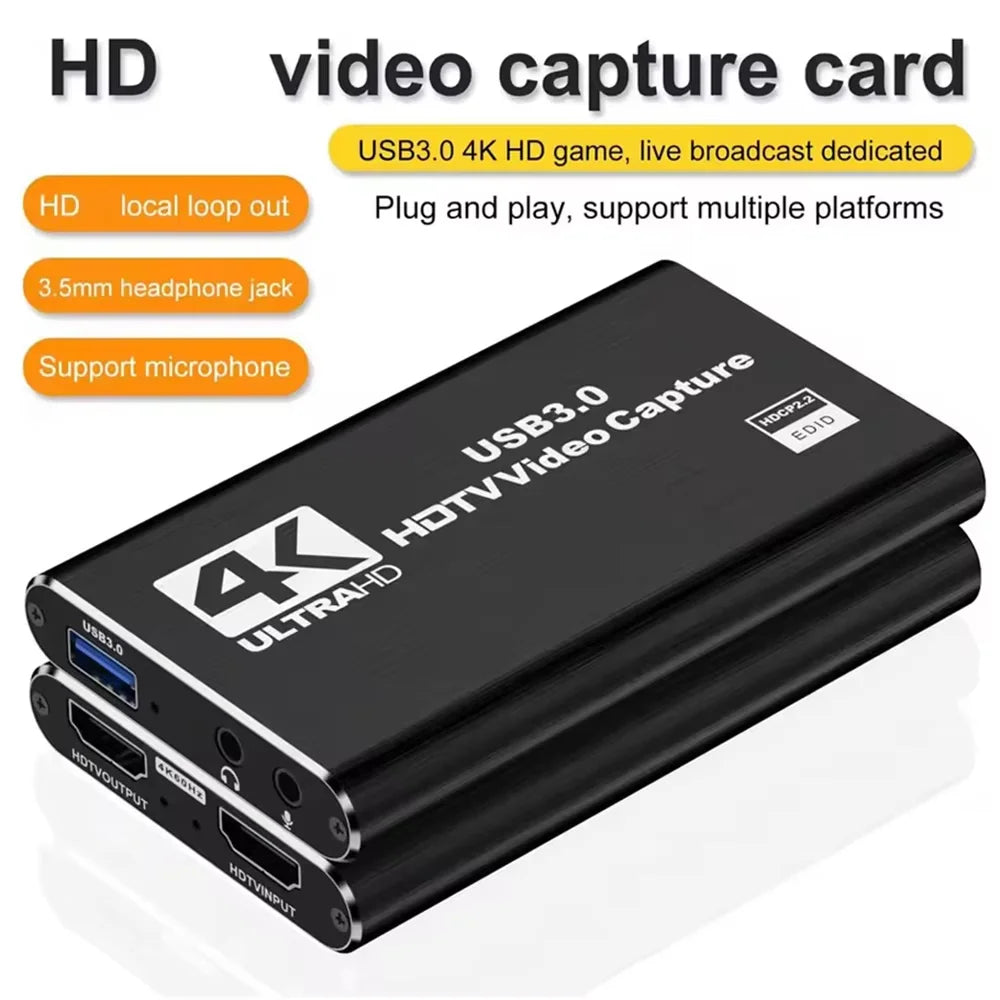

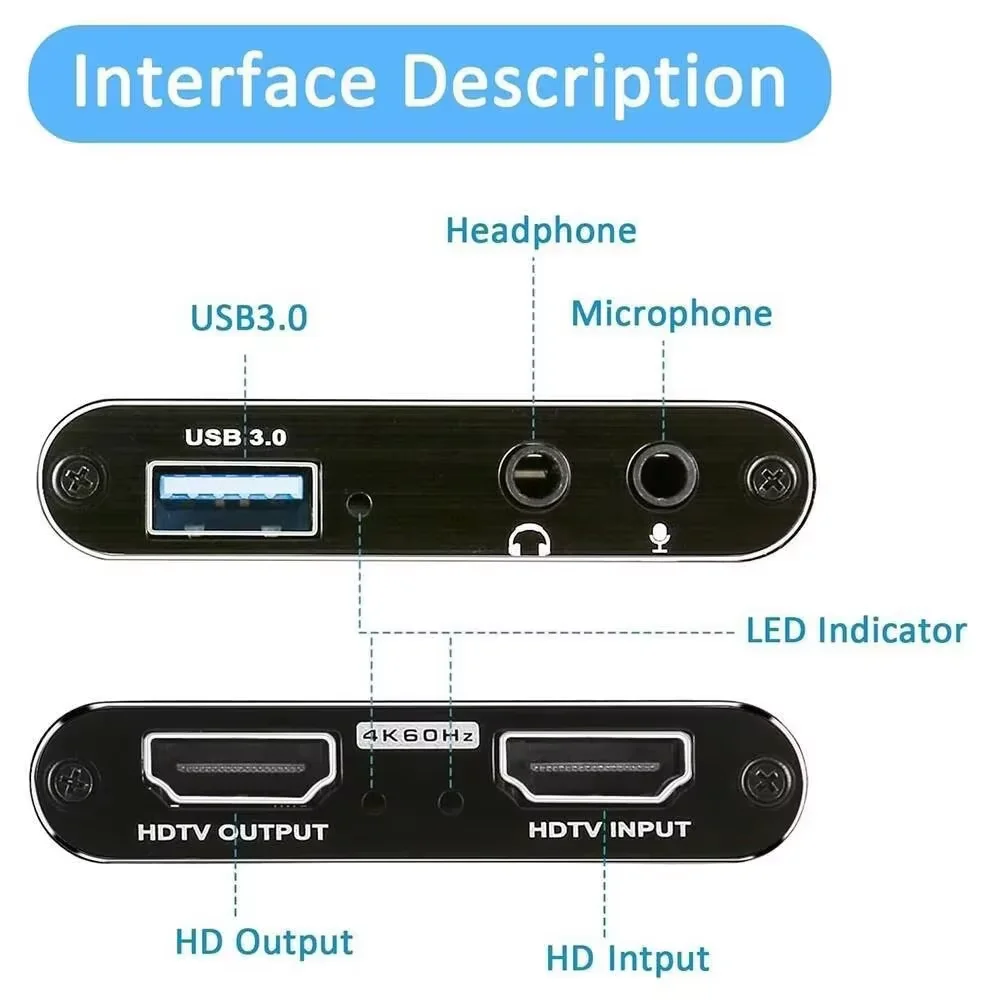

🌍🌍Interface Description:

1. Signal indicator: When the device captures video normally, the indicator lights up.

2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights.

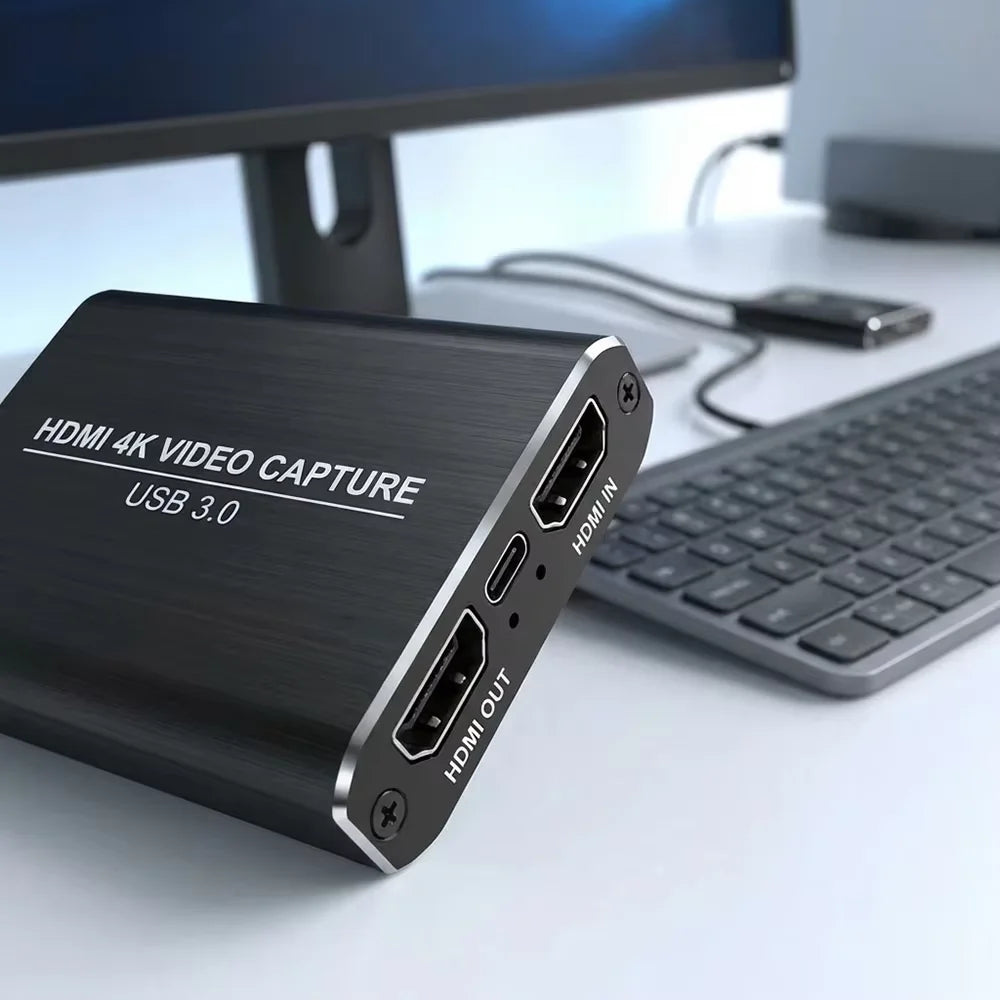

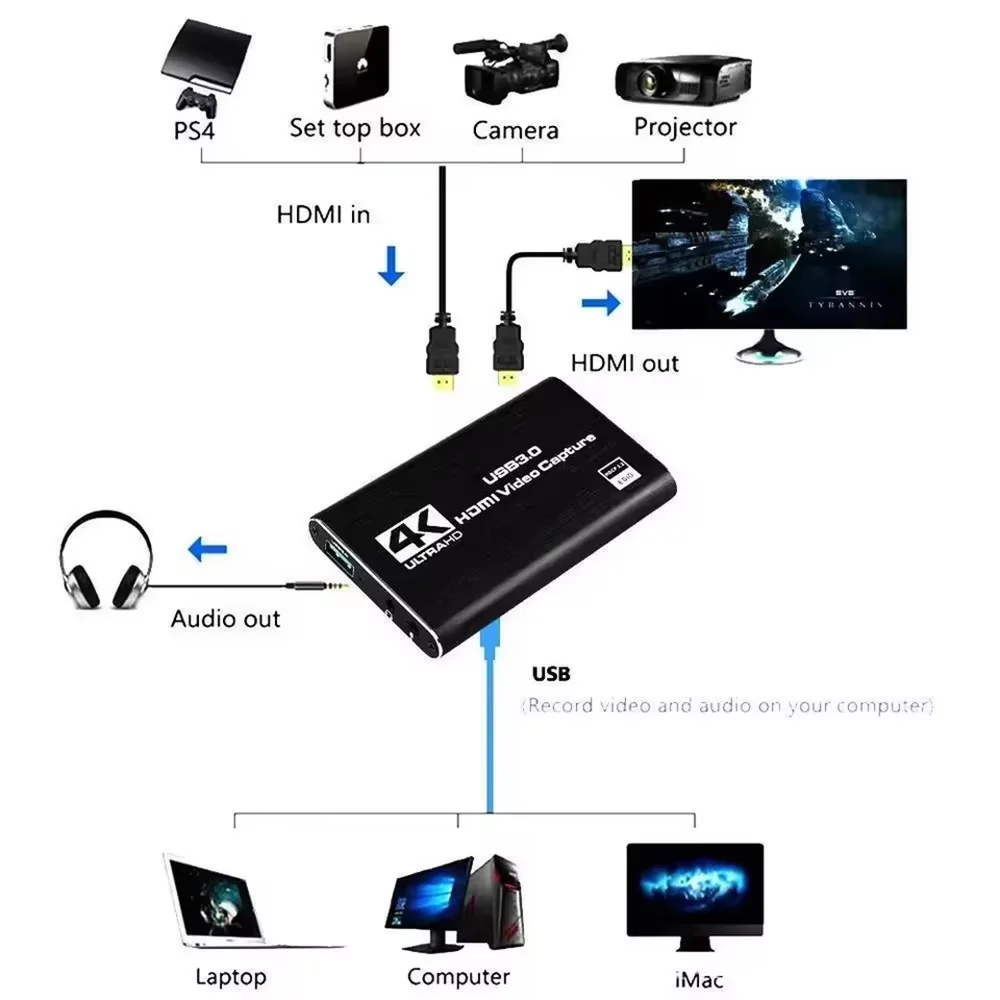

3. HDMI-compatible input: This slot is where the HDMI-compatible output source such as camera, camcorder, game box, IPTV box, etc. is connected.

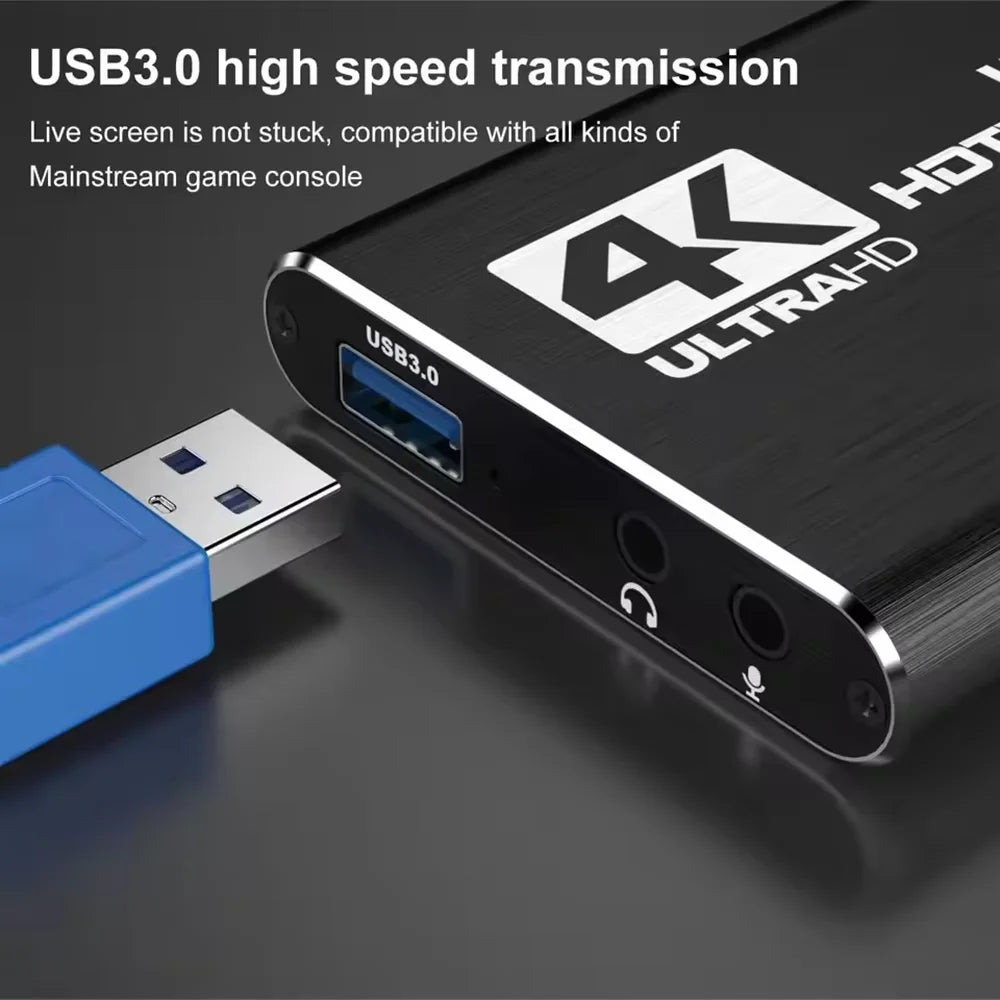

4. USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop.

🌍🌍Features:

1. It can capture single HD HDMI-compatible video signal;

2. The recorded video signal can reach 1080p / 60Hz, HDMI-compatible input supports 4K / 30Hz;

3. Support MJPEG and YUY2;

4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;

5. Some win7 need to install the driver;

6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;

7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);

8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;

9. Can automatically detect the input audio format and convert it to 48KHz PCM audio;

10. 2 collection rods can be used on a PC;

11. Support online firmware upgrade to better improve product compatibility;

12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;

13. Support all third-party player software compatible with UVC and UAC protocols.
